CNC Roll Grinder Machinery

All the headstock and front base, carriage are cast in high strain casting up to FC30~FC35. Ribs of the base are designed with cellform to get stability & rigidness. The guideway are lubricated by hydrodynamic & static lubrication-system to get smooth motion and low friction occur between base and table.

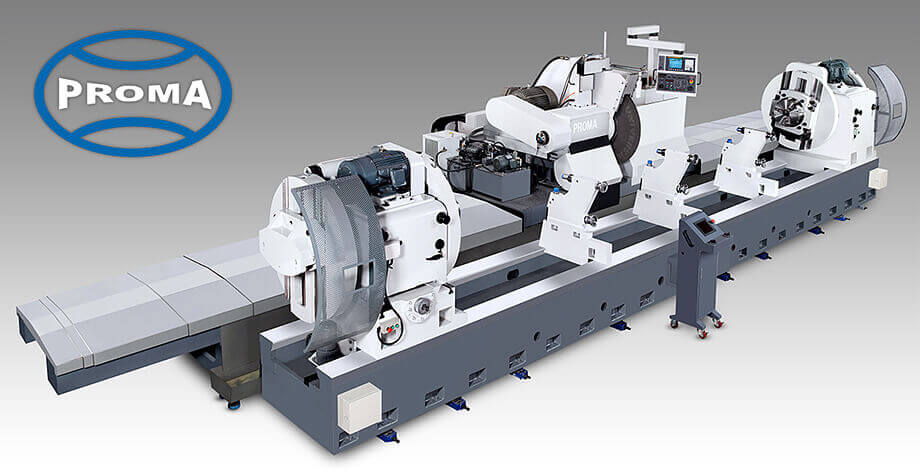

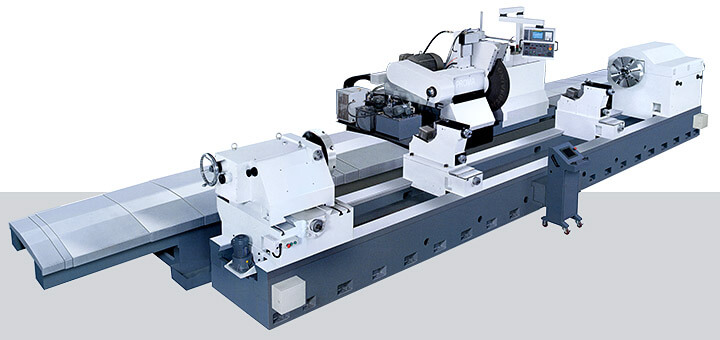

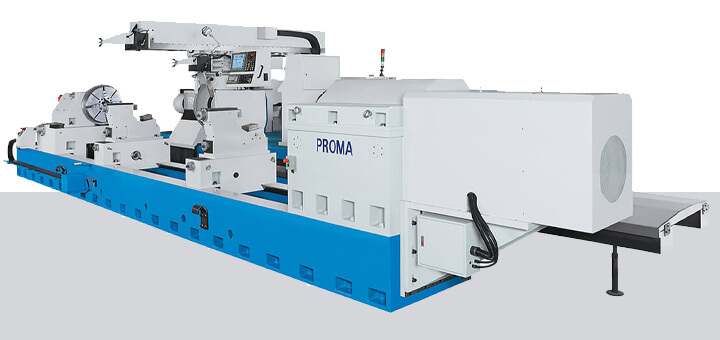

H-TYPE CNC Roll Grinder

Distance between c.c. : 5M, 6M, 7M, 8M, 10M, 12M

Swing over table : Ø1,300 Ø1,600 Ø2,000mm

Max weight of workpiece : 40,000kg

READ MORE

L-TYPE CNC Roll Grinder

Distance between c.c. : 3M, 4M, 5M, 6M

Swing over table : Ø850 Ø1,000mm

Max weight of workpiece : 6,000kg

READ MORE

M-TYPE CNC Roll Grinder

Distance between c.c. : 3M, 4M, 5M, 6M

Swing over table : Ø600mm

Max weight of workpiece : 4,000kg

READ MORE

S-TYPE CNC Roll Grinder

Distance between c.c. : 1.5M, 2M, 3M, 4M

Swing over table : Ø400mm

Max weight of workpiece : 1,500kg

READ MORE

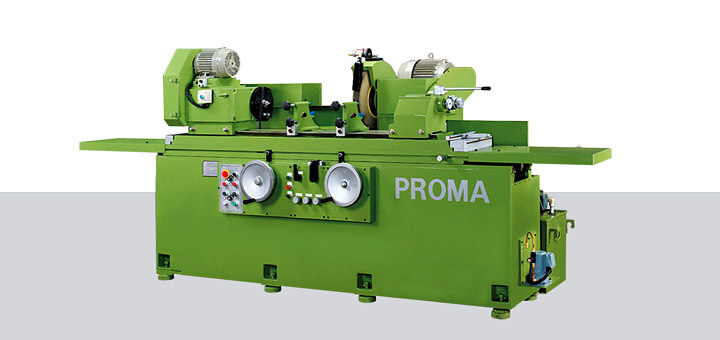

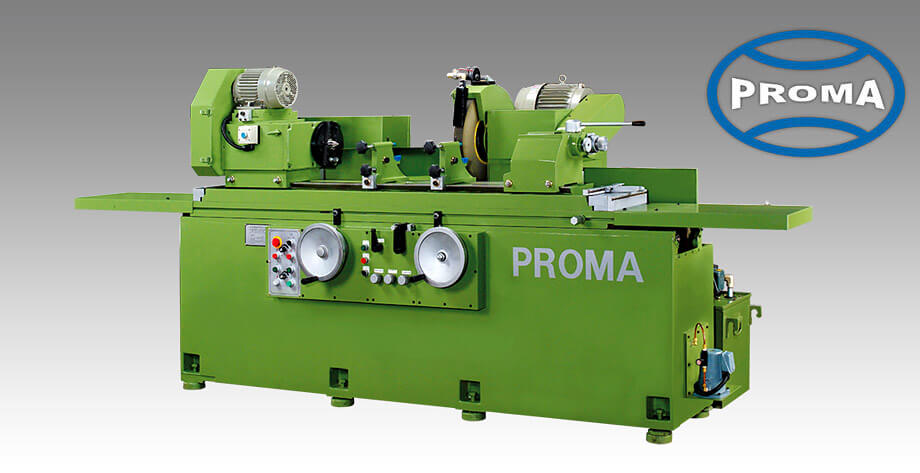

Manual Grinder Machine

Distance between c.c. : 1M

Swing over table : Ø350mm

Max weight of workpiece : 600kg

READ MORE
