S-TYPE CNC Roll GrinderProduct

Equipped With Measuring Device

S-TYPES40SC

Max. swing over tableØ400mmØ400mm

Max. distance between c.c.1.5M, 2M, 3M, 4M1.5M, 2M, 3M, 4M

Max. weight of workpiece1,500kg1,500kg

Max. O.D. groundØ400mmØ400mm

Rang of grinding dia.Ø5 ~ Ø400Ø5 ~ Ø400

Specifications sheet

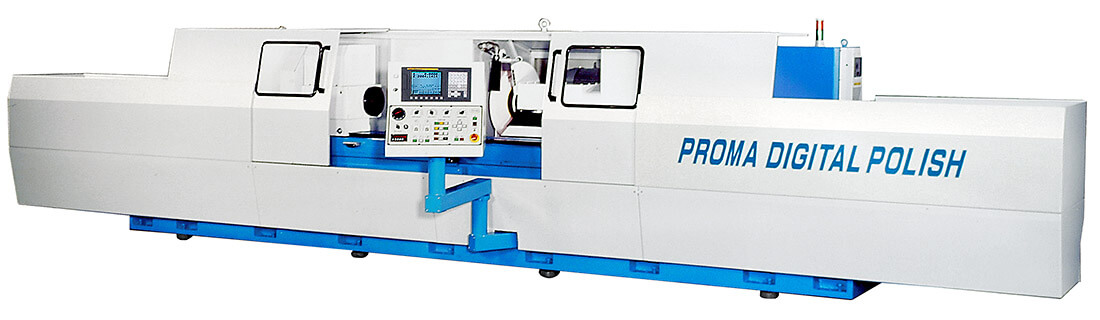

SC-TYPE CNC Crankshaft Grinder

CNC Roll Grinder Machinery FANUC CNC-controller is applied to develop the roll grinding process automatically. The system is configured with a humanized operation panel for user Which made the grinding operation became easy and precision. All the operator need to do just call a cutting program from memory to per formed the grinding sequentially. The crown grinding is also easy to get which include base arc curve SINE curve COSINE curve CVC curve and combined arc curve...
